| Image | Buy Product | Part Number | Datasheet | Rated V | Nom. Cap. (F) | ESR DC (mΩ) | ESR AC (mΩ) | Leakage Current (µA) |
Dimensions (mm) | Rated | Weight/Unit (g) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (1 KHz) | (72 hrs @ 25C) | D | L | d | LS | Current (A) | ||||||||
 |
Buy Product | TPLT-2R3/11WR10X30 | Datasheet | 2.3 | 11 | 69 | 60 | 48 | 10 | 30 | 0.6 | 5 | 7.2 | 4 |
 |
Buy Product | TPLT-2R3/3.3WR8X20 | Datasheet | 2.3 | 3.3 | 180 | 150 | 22 | 8 | 20 | 0.6 | 3.5 | 2.4 | 1.6 |
 |
Buy Product | TPLT-2R3/4.0WR10X20 | Datasheet | 2.3 | 4 | 190 | 130 | 23 | 10 | 20 | 0.6 | 3.5 | 2.6 | 2.3 |
 |
Buy Product | TPLT-2R3/6.0WR8X28 | Datasheet | 2.3 | 6 | 162 | 140 | 24 | 8 | 28 | 0.6 | 5 | 3.5 | 2.3 |

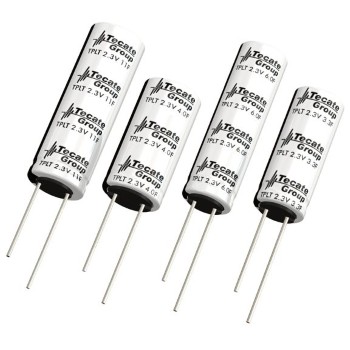

Tecate Group's New wire-lead TPLT ultracapacitors are made with a new electrolyte that enables operation in environments up to 105°C (221°F), which is higher than any other wire lead ultracapacitor on the market. Rated at 2.3V per cell, these new ultracapacitors are ideal for automotive, industrial or smart grid applications that are exposed to higher temperatures during operation.
