| Image | Buy Product | Part Number | Datasheet | Rated V | Nom. Cap. (F) | ESR DC (mΩ) | ESR AC (mΩ) | Leakage Current (µA) |
Dimensions (mm) | Rated | Weight/Unit (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (1 KHz) | (72 hrs @ 25C) | D | L | Current (A) | ||||||||
 |
Buy Product | TPLHE-2R7/550PS35X60 | Datasheet | 2.7 | 550 | 4 | 2.9 | 600 | 35 | 60 | 232 | 72 |

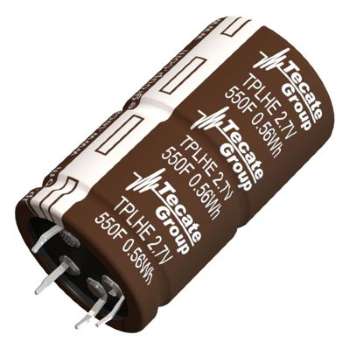

Tecate Group's New Snap-in TPLHE ultracapacitor is made with a new electrode formulation that enables higher energy density than our TPLS Sanp-in product offerings. Rated at 2.7V per cell, this new ultracapacitor stores up to 40% more energy in the same form factor as the TPLS Snap-in series in the same form factor.
