| Image | Buy Product | Part Number | Datasheet | Rated V | Nom. Cap. (F) | ESR DC (mΩ) | ESR AC (mΩ) | Leakage Current (µA) |
Dimensions (mm) | Rated | Weight/Unit (lbs) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (1 KHz) | (72 hrs @ 25C) | L | W | H | Current (A) | ||||||||
 |
Buy Product | PBLS-0.5/27 | Datasheet | 27 | 0.5 | 1660 | 960 | 0.32 | 26 | 53 | 22 | 3.69 | 0.1 |
 |
Buy Product | PBLS-0.83/32.4 | Datasheet | 32.4 | 0.83 | 1080 | 780 | 0.03 | 36 | 64 | 22 | 7.2 | 0.12 |
 |
Buy Product | PBLS-1.0/27 | Datasheet | 27 | 1 | 910 | 660 | 0.33 | 37 | 54 | 22 | 7.07 | 0.1 |
 |
Buy Product | PBLS-1.25/21.6 | Datasheet | 21.6 | 1.25 | 740 | 540 | 0.33 | 36 | 43 | 22 | 7.01 | 0.08 |
 |
Buy Product | PBLS-1.66/16.2 | Datasheet | 16.2 | 1.66 | 570 | 420 | 0.33 | 36 | 64 | 11 | 6.92 | 0.12 |
 |
Buy Product | PBLS-1.83/32.4 | Datasheet | 32.4 | 1.83 | 600 | 420 | 1.41 | 42 | 79 | 27 | 14.14 | 0.2 |
 |
Buy Product | PBLS-11.25/10.8 | Datasheet | 10.8 | 11.25 | 156 | 144 | 1.52 | 53 | 53 | 14 | 22.8 | 0.1 |
 |
Buy Product | PBLS-2.0/13.5 | Datasheet | 13.5 | 2 | 485 | 360 | 0.33 | 36 | 53 | 11 | 6.85 | 0.05 |
 |
Buy Product | PBLS-2.33/32.4 | Datasheet | 32.4 | 2.33 | 516 | 360 | 1.41 | 46 | 79 | 27 | 17.15 | 0.24 |
 |
Buy Product | PBLS-2.5/10.8 | Datasheet | 10.8 | 2.5 | 400 | 300 | 0.33 | 36 | 43 | 11 | 6.75 | 0.04 |
 |
Buy Product | PBLS-2.83/32.4 | Datasheet | 32.4 | 2.83 | 420 | 300 | 1.42 | 52 | 79 | 27 | 20.96 | 0.24 |
 |
Buy Product | PBLS-3.33/32.4 | Datasheet | 32.4 | 3.33 | 408 | 288 | 1.43 | 53 | 79 | 27 | 24.55 | 0.28 |
 |
Buy Product | PBLS-3.33/8.1 | Datasheet | 8.1 | 3.33 | 315 | 240 | 0.33 | 36 | 32 | 11 | 6.59 | 0.03 |
 |
Buy Product | PBLS-3.4/27 | Datasheet | 27 | 3.4 | 360 | 260 | 1.42 | 52 | 66 | 27 | 20.64 | 0.2 |
 |
Buy Product | PBLS-3.5/21.6 | Datasheet | 21.6 | 3.5 | 364 | 260 | 1.41 | 46 | 53 | 27 | 16.62 | 0.16 |
 |
Buy Product | PBLS-3.75/32.4 | Datasheet | 32.4 | 3.75 | 348 | 312 | 1.52 | 53 | 79 | 27 | 27.43 | 0.31 |
 |
Buy Product | PBLS-4.5/27 | Datasheet | 27 | 4.5 | 300 | 270 | 1.52 | 53 | 66 | 27 | 26.88 | 0.26 |
 |
Buy Product | PBLS-4.66/16.2 | Datasheet | 16.2 | 4.66 | 288 | 210 | 1.41 | 46 | 79 | 14 | 16.31 | 0.12 |
 |
Buy Product | PBLS-5.6/13.5 | Datasheet | 13.5 | 5.6 | 250 | 185 | 1.41 | 46 | 66 | 14 | 15.75 | 0.1 |
 |
Buy Product | PBLS-5.62/21.6 | Datasheet | 21.6 | 5.62 | 252 | 228 | 1.52 | 53 | 53 | 27 | 26.1 | 0.21 |
 |
Buy Product | PBLS-7.5/16.2 | Datasheet | 16.2 | 7.5 | 204 | 186 | 1.52 | 53 | 79 | 14 | 24.9 | 0.15 |
 |

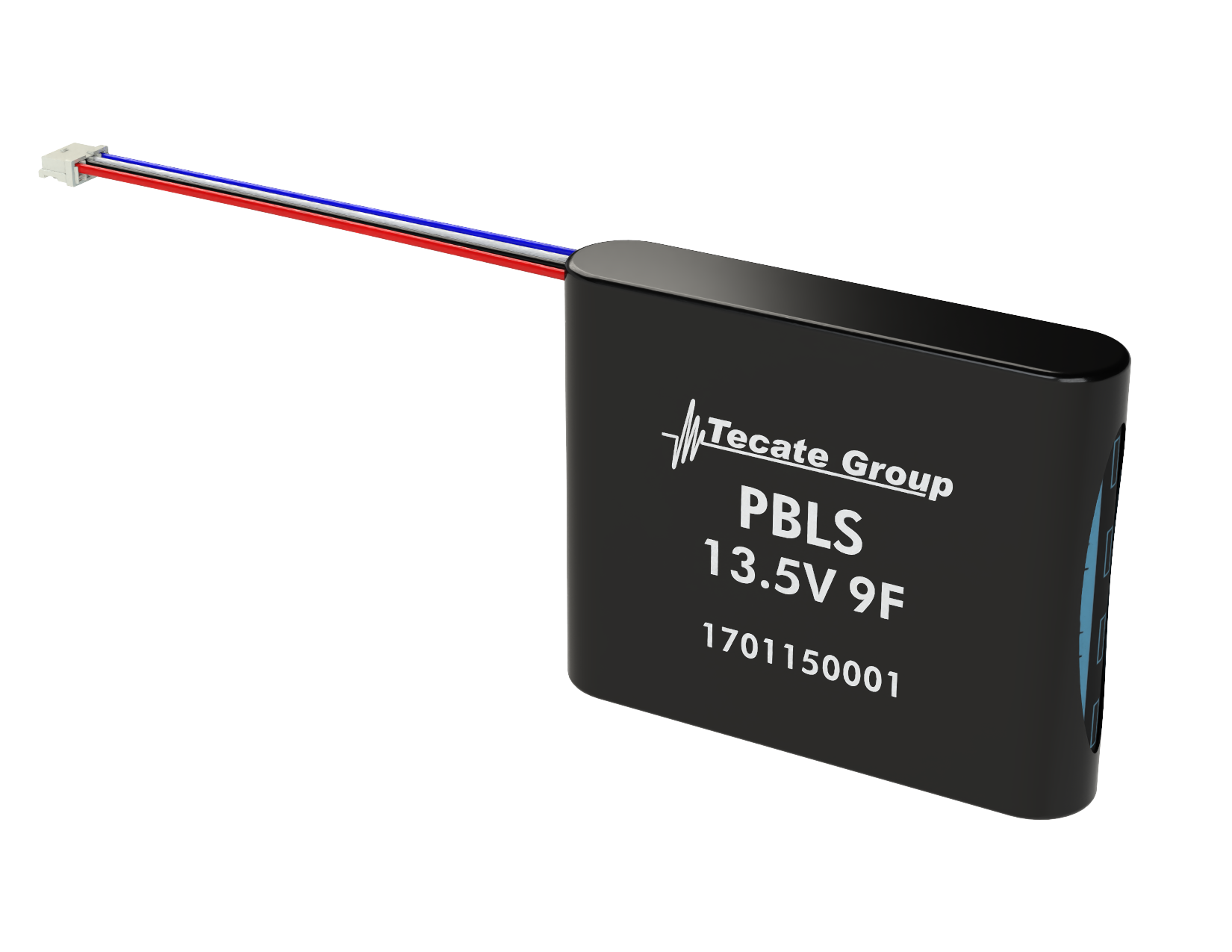

Buy Product | PBLS-9.0/13.5 | Datasheet | 13.5 | 9 | 170 | 165 | 1.52 | 53 | 66 | 14 | 24.01 | 0.12 |
