Type PBLC 3.8V
Hybrid capacitor (LIC) with quick connector

Features

  • Compact size and energy dense
  • Higher voltage
  • Quick charge and discharge
  • UL recognized RoHS & Reach compliant
  • Molex 87439-0200

Applications

  • Pulse power demand
  • Ride thru power support
  • Back up power
  • Stand alone or augment existing energy/power source

General Specifications

ItemPerformance
Operating temperature-15°C to +70°C @ 3.8V
-15°C to +85°C @ 3.5V
Storage temperature-25°C to +70°C
Capacitance range10F to 450F
Capacitance tolerance+/-20%
Rated voltage3.8 VDC / 3.5 VDC
Minimum rated voltage2.2 VDC
Surge voltage4.2 VDC
Temperature characteristicsCapacitance change: Within ±50% of initial measured value at +25°C (-15°C to +70°C)
Internal resistance: Within ±800% of initial measured value at +25°C (at -15°C)
Endurance
(At rated voltage & max. operating temp)
After 1000 hours:
Capacitance change: ±30% of minimum rated value
Internal resistance: Within 2 times of maximum rated value
Projected cycle lifeAfter 500,000 cycles: From 3.8V to 2.5V at 25°C
Capacitance change: Within ±30 % of minimum value
Internal resistance: Within 2 times of maximum rated value
Shelf lifeAfter 1000 hours storage, at 70°C without load, the capacitor shall meet the specified endurance limits.

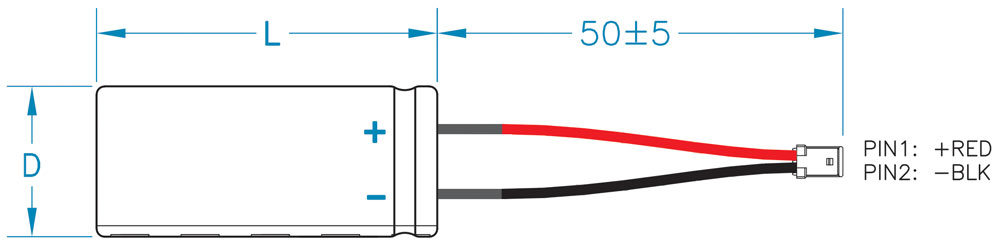

Dimensions


Standard Products

Part Number ULNom. Cap. (F)ESR AC (mΩ)
(1 KHz)
ESR DC Typical (mΩ)Leakage Current (µA)Dimensions (mm)Rated
Current (A)
Max
Current* (A)
Weight/Unit (grams)
DL
PBLC-3R8/10MA210548185018140.050.52.34
PBLC-3R8/20MA2203481050110160.1512.54
PBLC-3R8/25MA2253181050110160.1512.64
PBLC-3R8/25MA282534895018200.130.82.64
PBLC-3R8/30MA230298950110160.1512.74
PBLC-3R8/30MA283029885018250.150.92.74
PBLC-3R8/40MA240268750210200.251.83.24
PBLC-3R8/50MA250248750210200.251.83.44
PBLC-3R8/60MA260178530210250.3534.04
PBLC-3R8/70MA270168530210250.3534.24
PBLC-3R8/100MA2100138470312.5250.5545.84
PBLC-3R8/120MA2120138450312.5250.656.04
PBLC-3R8/150MA2150118450512.5250.656.64
PBLC-3R8/200MA2200118450516251.1710.04
PBLC-3R8/220MA2220108450516251.1710.44
PBLC-3R8/270MA22701181701318402.25714.24
PBLC-3R8/350MA23501131701318402.5716.44
PBLC-3R8/450MA24501081701318402.75718.44
* Maximum allowable current for 3 seconds or less.
